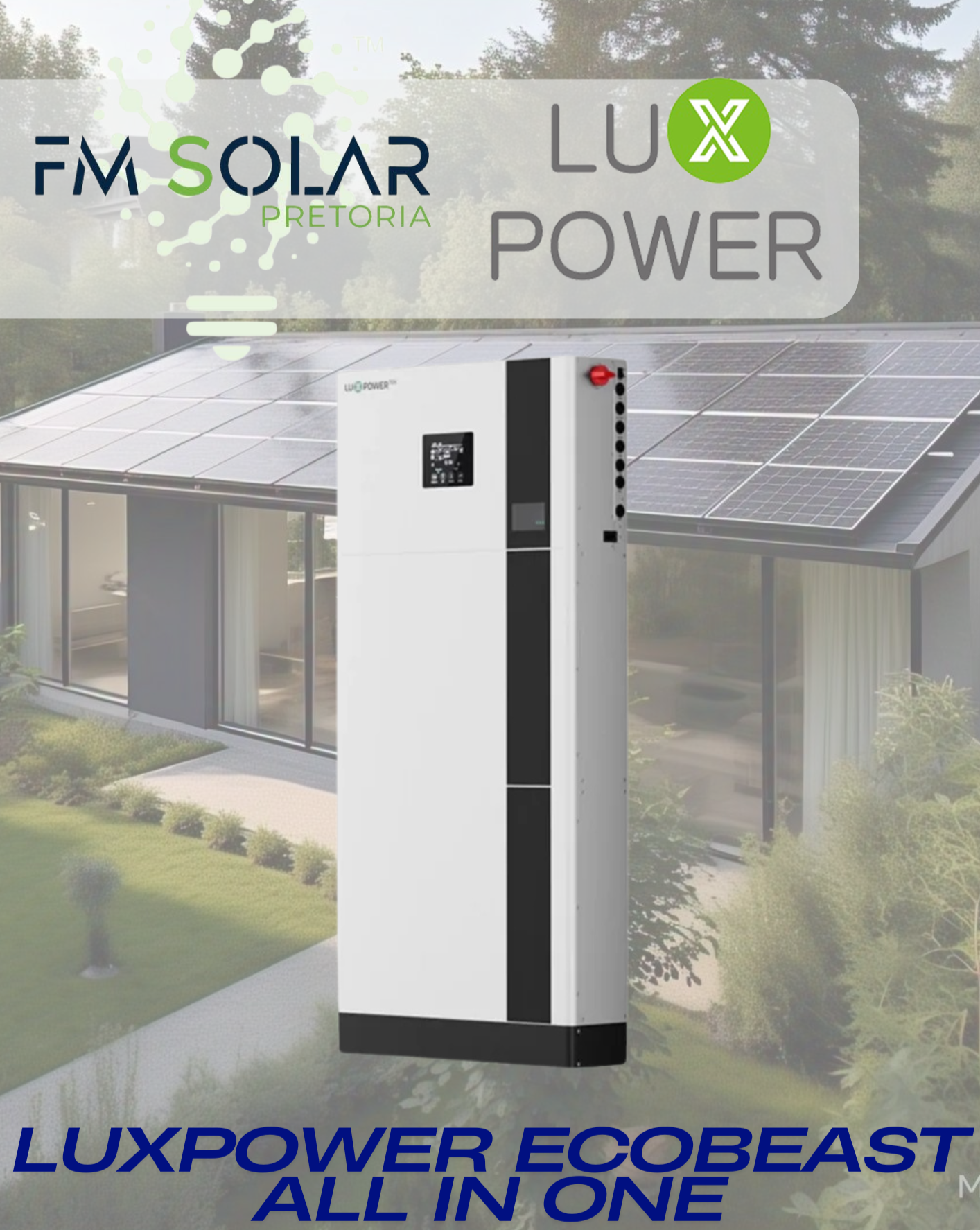

LuxPower Eco-Beast All In One System

Description

The Luxpower Eco Beast is a cutting-edge all-in-one energy storage system combining a powerful 6kW hybrid solar inverter with a 10kWh battery bank and is crafted to cater to both residential and small commercial needs. The Eco Beast ensures maximum power efficiency by seamlessly integrating solar energy, battery storage, and grid power, giving you complete energy flexibility.

Key Features:

• Hybrid System: Combines solar, battery, and grid energy for optimal power usage.
• Smart Monitoring: Equipped with battery module-level monitoring, remote firmware updates, and real-time energy management.
• On/Off-Grid Switching: Seamlessly switches between grid and off-grid power sources.
• Robust Power Handling: Capable of handling up to 9kW of PV input, with dual MPPT inputs for increased efficiency.
• Remote Management: Control and monitor your system remotely via Wi-Fi/RS485/CAN connectivity.

Specifications:

• PV Input: Max. PV array power of 9kW with 2 MPPTs, suitable for maximizing energy harvesting.
• Battery System: 10kWh Lithium-ion battery, expandable with up to 8 units in parallel for flexible energy storage.
• Inverter Performance: Rated power output of 6kW with pure sine wave output and peak efficiency of 93%.
• Switching Time: Typical switching time is less than 10 ms, ensuring a near-instant response during power outages.
• Protection & Certification: IP20 rating, CE and UN38.3 certified, ensuring safety and reliability.
• Cooling: Smart cooling system for efficient thermal management.
• Dimensions & Weight: Inverter dimensions (580mm x 434mm x 165mm), battery dimensions (580mm x 1300mm x 165mm), and combined weight of 125.4 kg.
